Palletizing


Palletizing


The last task in logistics work is to load those products which are ready for shipment onto cage carts and pallets. However, there are also heavier products ranging from 20 kg to 30 kg, and continually performing this transfer work is extremely taxing. MUJIN realizes automation through robotics, freeing people from such tough work.

Conventional methods - Problems


  • Work is tough and is hard on the back.
  • Tough labor
  • Work-break required for each job

MUJIN system - Solutions


  • Robots automatically palletize to pallets and cage carts
  • Robots can be freely selected according to the sizes and weights of workpieces

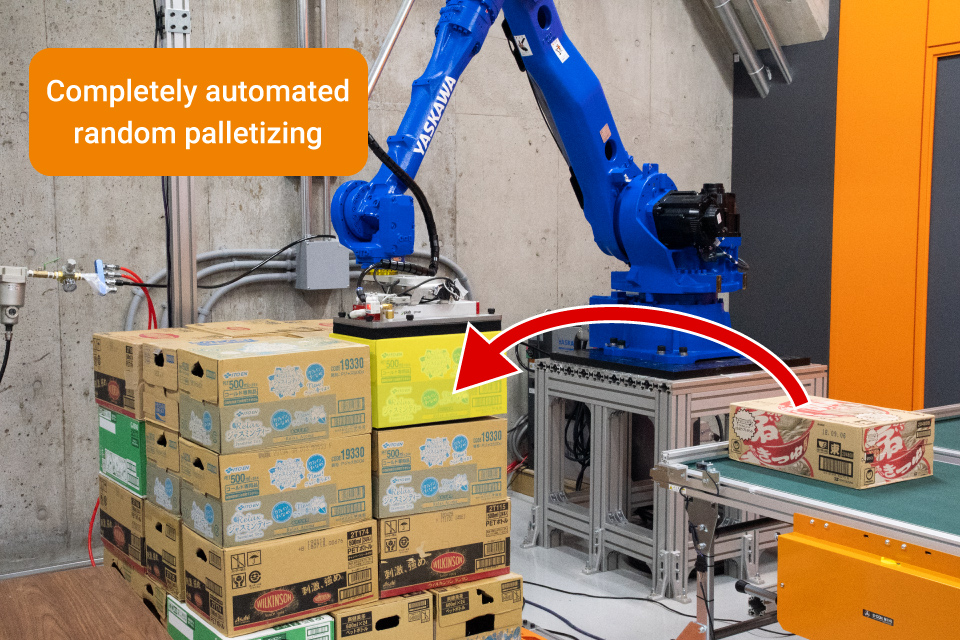

Feature 1 Real time random palletizing

Conventional methods - Problems

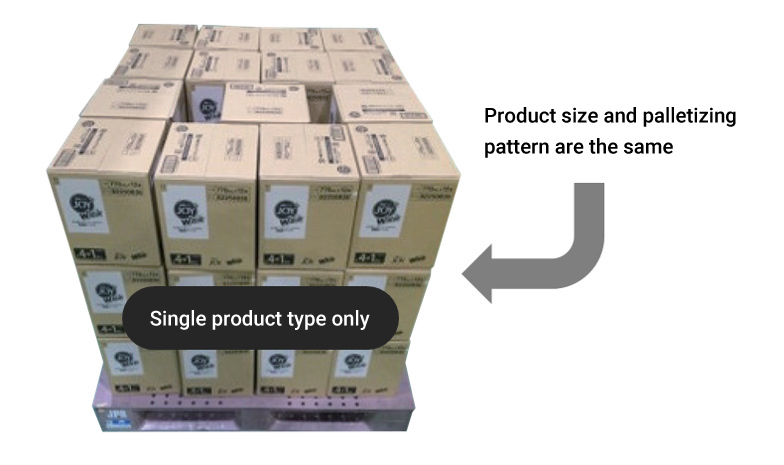

  • Palletizing can only be performed for a single product type.
  • Palletizing new product types requires reperforming settings

MUJIN system - Solutions


  • Product size is recognized with MUJIN 3D Vision, and palletizing is performed in real time.

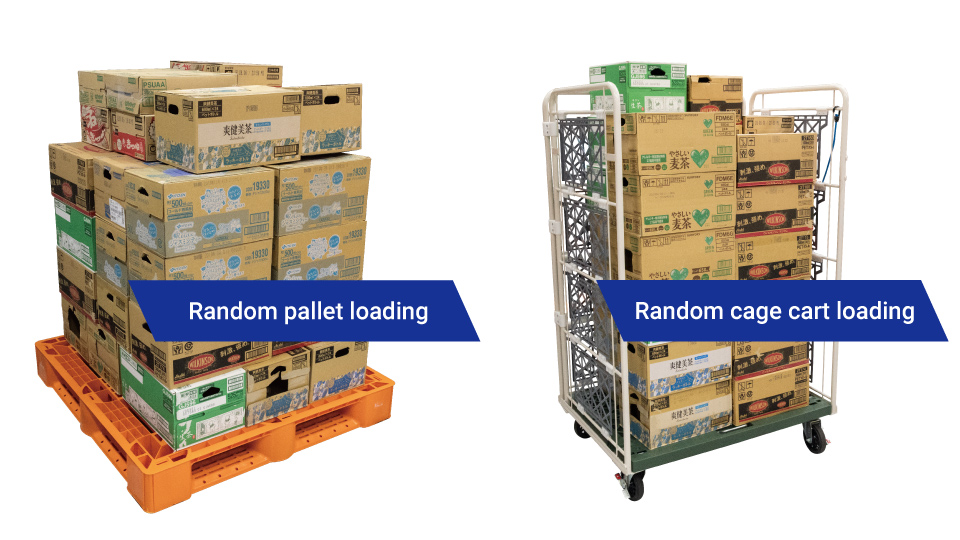

  • Compatible with various loading units such as pallets, cage carts, cart racks etc.
  • It is also possible to improve loading efficiency by performing advance order calculations.

Feature 2 No stopping, even with unexpected workpieces and load collapses

Conventional methods - Problems

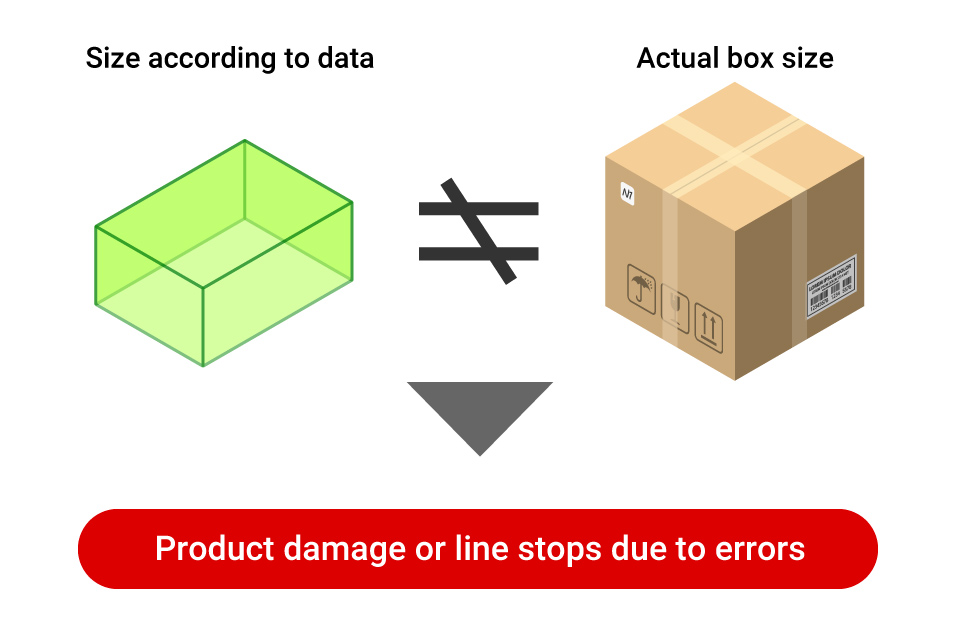

  • If products arriving are inconsistent with the order calculations, error stops or product collisions may occur.
  • If there is misalignment on palletizing, or there are load collapses, product collisions may occur.

MUJIN system - Solutions


  • If there is misalignment on palletizing, or there are load collapses, product collisions may occur.

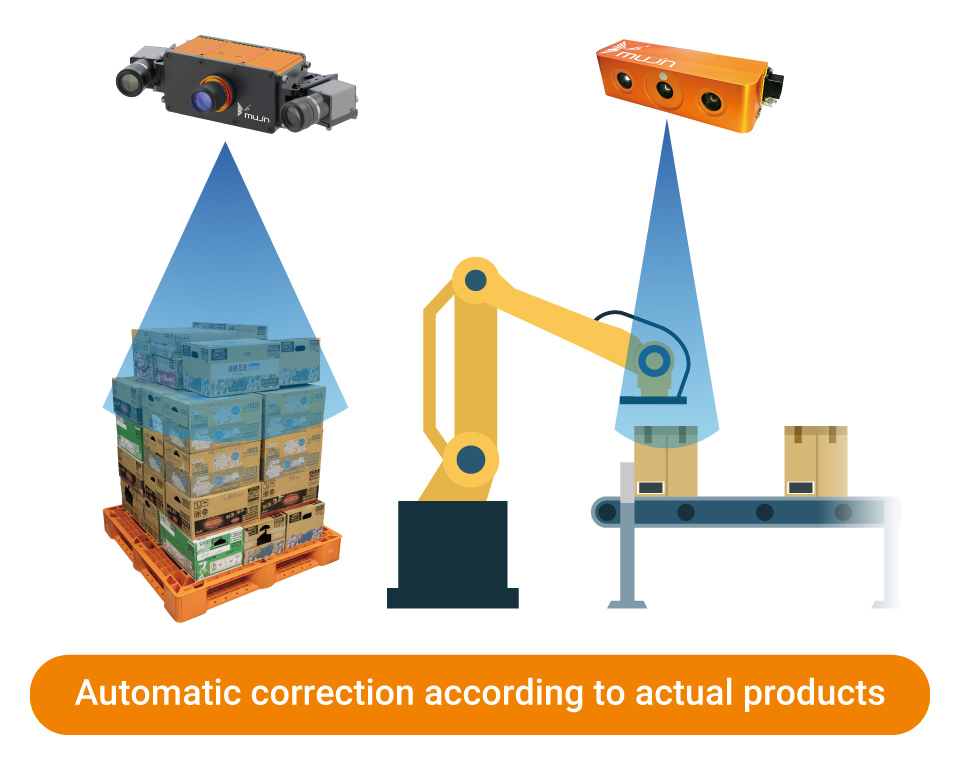

  • The palletizing side is also monitored by MUJIN 3D Vision, and palletizing is performed according to conditions, even when there are displacements of loads.

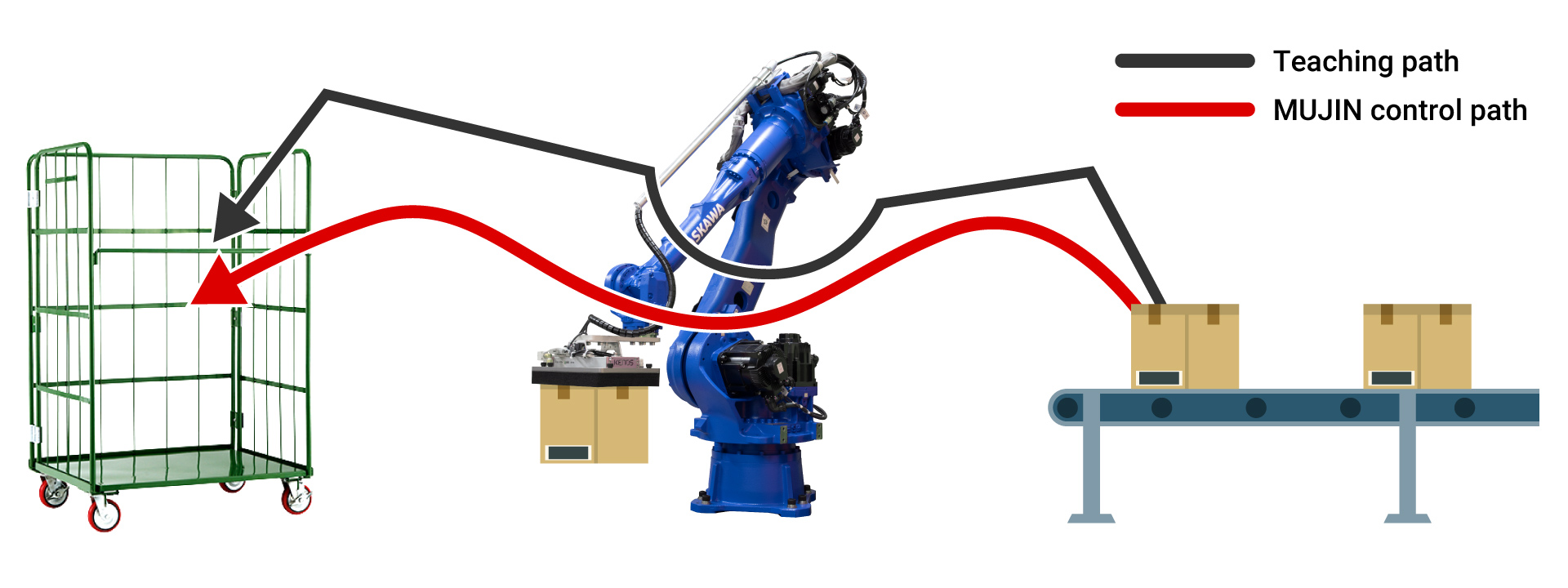

Feature 3 “Teachless” high performance

With conventional teaching methods, performance would be faster or slower depending on the robot’s programmer, and the robot’s potential performance would not be exploited to the maximum. When connected to the MUJIN Controller, all the robot’s operations are generated without teaching, and the optimum route is calculated.

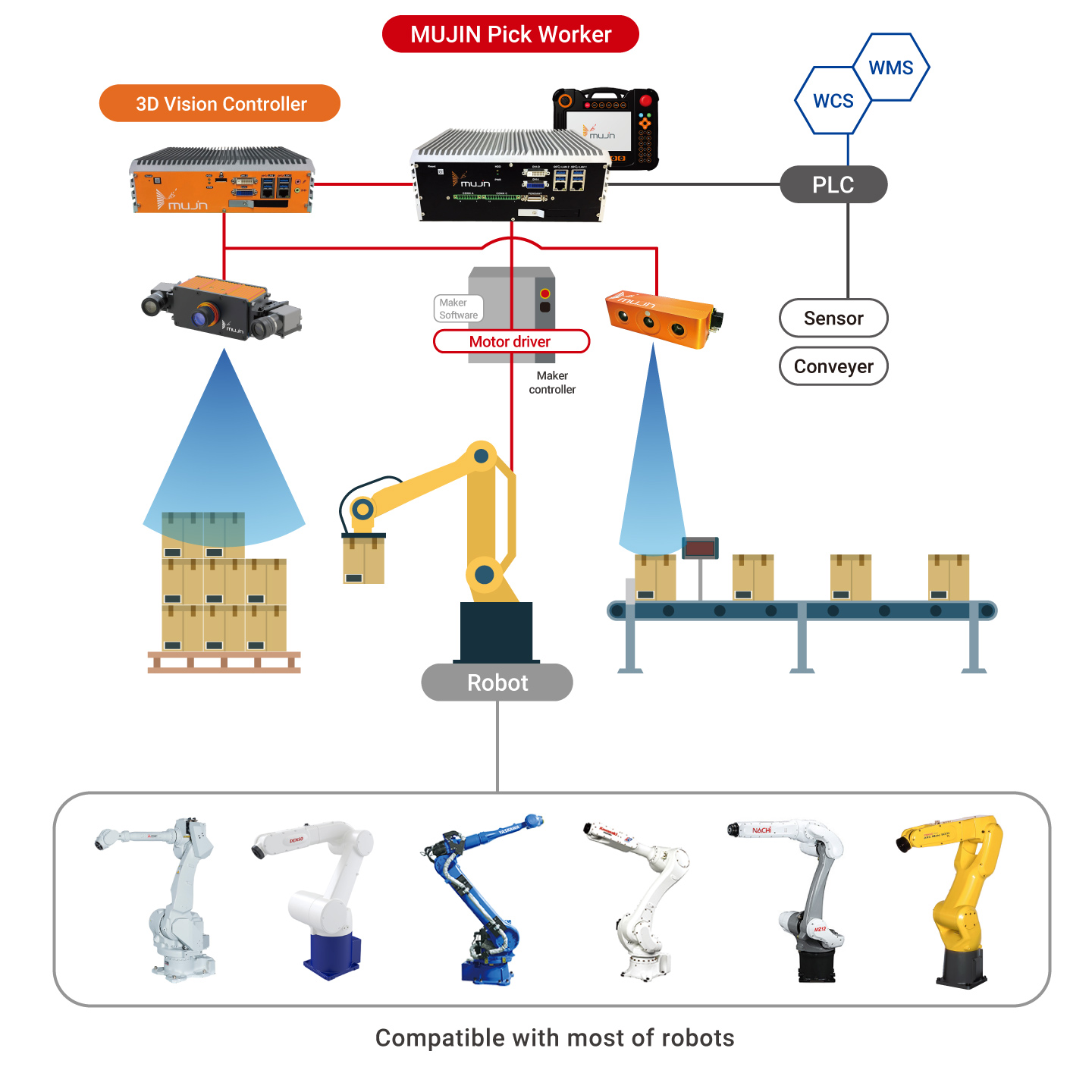

System configuration
